FS-20S  画像（CCD定位）伺服连续冲膜机/数控连续冲膜机

主要机能：
Main function:

数控连续冲压机是自动冲压非金属材料。

CNC continuous punching machines are automatic stamping of non-metallic materials.

带有CCD摄像和XY画像定位校正处理装置。（选装）

CCD camera and XY image positioning correction processing device.（Optional）

可以对冲压前产品的位置进行修正，以实现极高的冲压精度。The position of the product before stamping can be corrected to achieve extremely high stamping accuracy.

程序控制：

Program control:

通过显示屏输入程序，使加工更方便稳定。

The program is inputted through the display screen to make the processing more convenient and stable.

连续加工：

Continuous processing:

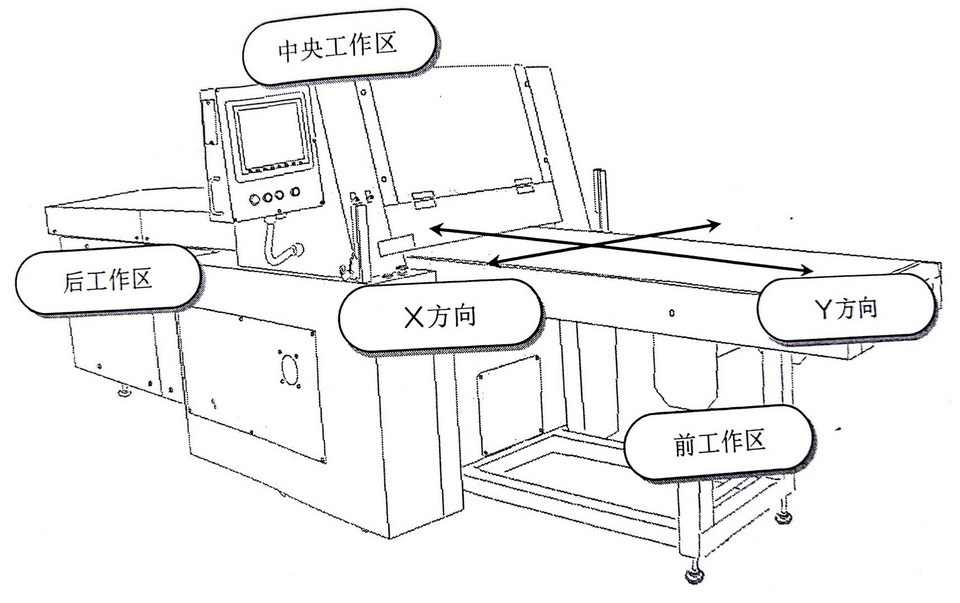

通过程序控制滑台，滑台的移动和冲压机构工作速度结合，提高加工效率。
Through the program to control the sliding table, the movement of the sliding table and the working speed of the punching mechanism are combined to improve the processing efficiency.

冲压调整：

Stamping adjustment:

可以以0.01mm为单位进行上下调整，实现高精度半切。
It can be adjusted up and down in units of 0.01mm to achieve high-precision semi-cut.

刀具安装及拆卸：

Tool installation and removal:

刀具安装及拆卸实现半自动操作。

Tool installation and removal are achieved through semi-automatic operation.

补给润滑油：

Replenishing lubricant:

机器基本可以实现润滑油自动补给。
The machine can basically achieve automatic replenishment of lubricating oil.

裁切工艺：

Cutting process:

裁切加工时可以半切和全切混合加工。

When cutting, it can be processed by semi cut and full cut.
